20CBM 400L Manual Heavy Tipper Truck 6x4 for Mining

Place of Origin:CHINA
Brand Name:SHANCMAN
Model Number:SX3255DR384
Minimum Order Quantity:1 Unit
Price:Bargain
Payment Terms:L/C, T/T
Supply Ability:1/35Days
Product Details
Highlight:

400L Heavy Tipper Truck

,

Mining Heavy Tipper Truck

,

Mining 6x4 tipper truck
Fuel Type: Diesel
Dimension (L X W X H): 10000*2500*3500
Tank Volume: 20CBM
Gross Vehicle Weight: 25T
Wheelbase: 3775+1400
Van Material: Carbon Steel
Horsepower: 375hp
Cargo Tank Dimension: 5600*2300*1500
Passengers: 2
Air Conditioner: Automatic Thermostatic
Name: Heavy Dump Truck Tipper Truck
Keywords: Heavy Dump Truck
Product Description

Mining 20CBM Dump Truck Tipper Truck 6x4



The dump truck is our star product. We are very familiar with it and have a lot of experience in exporting it.We take the quality and performance of our trucks very seriously. Just tell us your transport needs and we will customise the tipper with different loading weights and volumes as well as colours. A good truck will help you to work well.



Fuel Type: Diesel
Transmission Type: Manual
Emission Standard: Euro 2
Gross Vehicle Weight: 25T
Wheelbase: 3775+1400
Drive Wheel: 6x4
Steering: Left
Market Segement: Engineering Transportation
Cylinders: 6
Forward Shift Number: 10
Cargo Tank Dimension: 5600*2300*1500
Passengers: 2
ABS(Antilock Braking System): Yes
ESC(Electronic Stability Control System): None
Air Conditioner: Automatic Thermostatic
Transmission: 10JSD180+QH50
Rear Axle: 16T
Dimension (l X W X H): 10000*2500*3500
Tank Volume: 20CBM
Color: White Red Bule Yellow Green Optional
Warranty: 1 Year
Engine: WP10.340E22
Horsepower: 375hp
Brand Name: Shacman
Segement: Heavy Truck
Engine Brand: WEICHAI
Gear Box Brand: FAST
Reverse Shift Number: 1
Cargo Tank Length: 6-8M
Driver's Seat: Normal
Cruise Control: None
Touch Screen: None
Window: Manual
Tire Number: 10
Product Name: Shacman Dump Truck
Tire: 12.00R20Radial Tyre
Front Axle: 9.5T
Fuel Tank: 400L

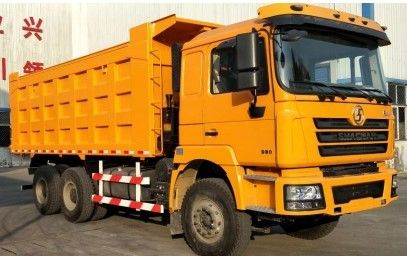

20CBM 400L Manual Heavy Tipper Truck 6x4 for Mining 0

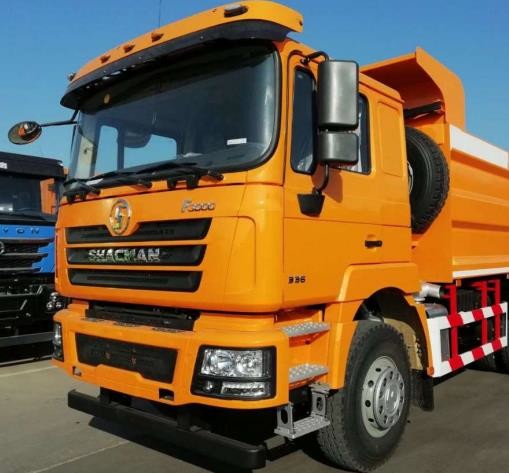

20CBM 400L Manual Heavy Tipper Truck 6x4 for Mining 1





What’s the qualify assurance we provided and how do we control quality?



1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.



2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
