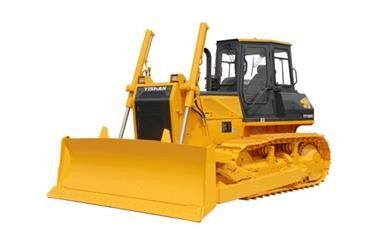

Agricultural Tractor Style Track Loader Dozer Bulldozer Construction Equipment

Place of Origin:CHINA
Model Number:T160H
Minimum Order Quantity:1 Unit
Price:Bargain
Payment Terms:L/C, T/T
Supply Ability:1/45DAYS
Product Details
Highlight:

Agricultural track loader dozer

,

track loader dozer Equipment

,

Tractor Style bulldozer construction equipment
Engine: WP10G178E355
Operation Weight（Kg: 15738
Rated Power (Kw/Rpm): 131/1850
Overall Dimensions L×W×H (Mm): 5125*3416*3190
Working Efficiency (For 40m Moving) (m3/H): 255
Fuel Consumption（G/KwH）: ≦ 215
Max Torque (NM/Rpm): 830/1150
Blade Type: Straight Shovel
Min.Ground Radium（M): 3.1
Grade Ability（°）: 30
Max.Drawbar Pull（KN）: 144
Forward（Km/H）: 2.7/3.7/5.4/7.6/11
Name: Low Fuel Consumption Bulldozer
Keywords: Construction Bulldozer Truck
Product Description

131Kw Crawler Type Low Fuel Consumption Bulldozer Engineering Construction Machinery



Bulldozers are essential pieces of heavy equipment used in numerous industries and applications, including construction, mining, agriculture and landscaping. Dozers are characterized by their tractor-style body and metal plate blade at the front. Some models may also have an attachment at the back to perform various other functions such as digging. The most common attachment is the ripper, which functions like a giant claw. Dozers run on heavy-duty tracks to provide better grip and mobility on uneven terrain.

Product features: high operating efficiency, low fuel consumption, low maintenance costs, low maintenance costs, economical and durable...



Engine

    WP10G178E355

Rated power (Kw/rpm)

131/1850

Fuel consumption(g/KwH)

≦ 215

Max torque (NM/rpm)

830/1150

Min.ground radium(m)

 3.1

Grade ability(°)

 30

Max.drawbar pull(KN)

 144
Operation weight(Kg) 15738

Forward(Km/H)

2.7/3.7/5.4/7.6/11

Reverse(Km/H)

3.5/4.9/7.0/9.8

Ground contact length (mm)

 2430

Shoe width (mm)

 510

Ground pressure (Kpa)

 63

Min.ground clearance (mm)

 400

Overall dimensions L×W×H (mm)

5125*3416*3190

Blade dimensions W×H (mm)

3416*1149

Blade digging angle(°)

 55

Blade max.tilt adjustment (mm)

 860

Blade max.ground clearance (mm)

 1095

Blade max.digging clearance(mm)

 532

Blade capacity (M³)

 4.5

Working efficiency (for 40m moving) (M3/h)

 255

System pressure (Mpa)

 13.7



Agricultural Tractor Style Track Loader Dozer Bulldozer Construction Equipment 0

Agricultural Tractor Style Track Loader Dozer Bulldozer Construction Equipment 1



1. Warranty time is 12 months.


2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.


3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
