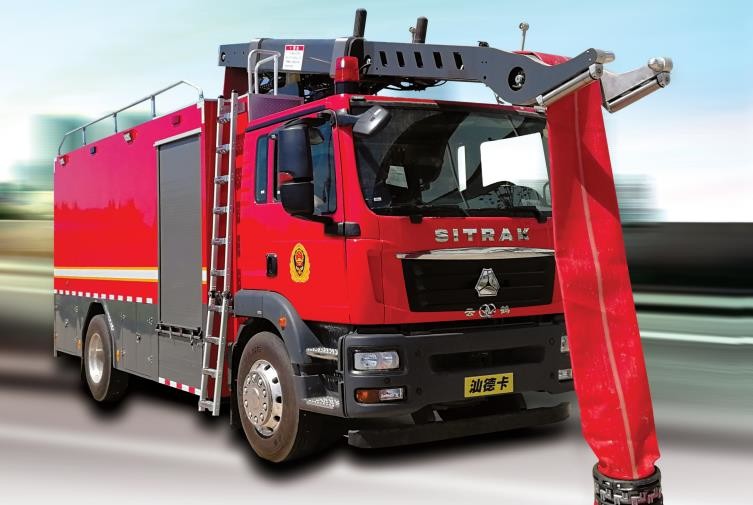

Carbon Steel Firefighter Water Rescue Fire Truck 4x4
Place of Origin:CHINA
Model Number:DN200-3000M
Minimum Order Quantity:1
Price:Bargain
Product Details
Highlight:
Carbon Steel water rescue fire truck
,4x4 water rescue fire truck
,Carbon Steel firefighter rescue truck
Water Supply Distance:
3000/1500
End Pressure:
0.2/0.6
Vertical Water Distance:
≥30
Water Supply Flow:
110/220
Working Temperature:
-25~+50
Product Description
Hose Laying Fire Truck
We are a top Chinese manufacturer of fire trucks. Our products are widely sold in the whole world, especially in Asia, Africa, America, etc. We can produce water tank fire truck, foam tank fire truck, dry powder fire truck, and Airport fire truck, forest fire truck, areal fire truck, etc, according to clients' different requirements.
Welcome to contact me and tell me your requirements by email
| Item | Unit | Description | ||||||||
| Model | Dong Feng brand Fire Truck | |||||||||
| Dimension | mm | 8150*2500*3360 | ||||||||
| Tank Dimension | m3 | Water Tank | Foam Tank | |||||||
| 8 | ||||||||||
| Material | Carbon steel | Stainless steel | ||||||||
| Curb Weight | kg | 8080 | ||||||||
| G.V.W | kg | 16000 | ||||||||
| Wheel Base | mm | 4500 | ||||||||
| F/R track base | mm | 1810/1800 | ||||||||
| F/R Axled-Load | Kg | 6000 / 10000 | ||||||||
| Approach/Departure angle | . | 34/14 | ||||||||
| Traction system | Type | 4*4 or 4*2 | ||||||||
| Max speed | Km/h | 85 | ||||||||
| Tire Specification/Number | Type | 10.00R20, 6+1 Spare Unit | ||||||||
| Engine | Model | EQB210 20 | ||||||||
| Emission/Kw | 5900 cc, 156 Kw / 2500 r | |||||||||
| Horse Power | 210 Hp | |||||||||
| Power | 700 N.m - 1600 r/min | |||||||||
| Type | Diesel, 6 cylinders, turbocharge, water cooling | |||||||||
| Brand | Dongfeng Cummins Engine Power Co., Ltd | |||||||||
| Standard | Euro II | |||||||||
| Gearbox | model | 6F&1R, DF6S900, Manual | ||||||||
| Brand | Dongfeng | |||||||||
| Fuel Tank | Liter | 200 | ||||||||
| Electronic | V | 24 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversible, Manual | |||||||||
| Steering | Powering, LHD or RHD | |||||||||
| Installing | Mp3, Radio | |||||||||
| Air Conditioner | Hot Wind / Cold Wind | |||||||||
| Fire Cannon Specification on the top of the fire truck | ||||||||||
| Fire Cannon model | PS 40, water | Working Range | Water >50 m | |||||||
| Foam type, Optional Item | ||||||||||
| PP 24, multi | Working Range | Foam >40 m | ||||||||
| Working angle | - 30 ~ 80 | Operation | Manual | |||||||
| working pressure | 1~4 Mpa | |||||||||
| Flowing Speed | <50 L / s | |||||||||
| Fire Pump Specification | ||||||||||
| Fire Pump model | CB10/40 | |||||||||
| Flowing Speed | 40L/s | Pressure | 1.0 Mpa | |||||||
| Water input Port | DN 135mm x 1 | Water suction pipe | 8 m, one Unit | |||||||
| Liquid Output Port | DN 80mm x 2, with ball valve control | |||||||||
| Liquid Output Port | DN 65mm x 2, with ball valve control | |||||||||
| Outside water input port | ||||||||||
| Liquid input Port | DN 65 x 2 Units, at two sides of the fire truck | |||||||||
| Foam Tank Specification | ||||||||||
| 2000 liter, pipe, and valve are all stainless steel material | ||||||||||
| Installing | ||||||||||
| Long Strip alarm light, light detector x2~12V60W, 5 Unit Window type warehouse, Rear climb ladder | ||||||||||
What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
