Heavy Equipment Construction Bulldozer Truck Track Type Dozer
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINXING CATHAY |
| Minimum Order Quantity | 1 |
| Price | bargain |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine | WP10G178E355 | Rated Power | 131/1850 |
|---|---|---|---|
| Fuel Consumpyion | ≤215 | Operation Weight | 15738 |
| Ground Contact Length | 2430 | Ground Pressure | 63 |
| High Light | Track Construction Bulldozer Truck,Track Type Construction Bulldozer Truck,track type dozer Truck |
||
Product Description

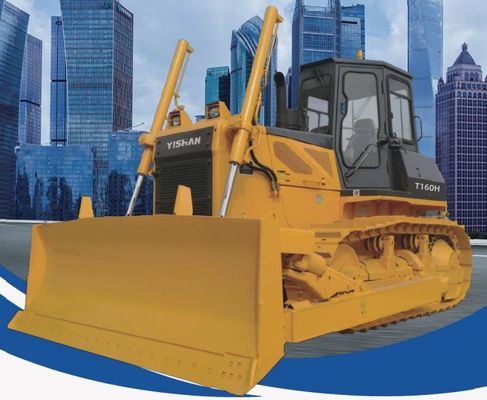

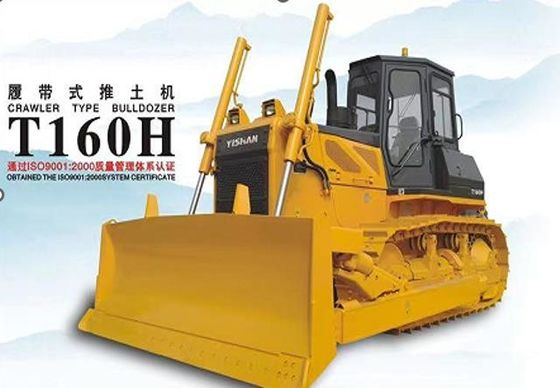

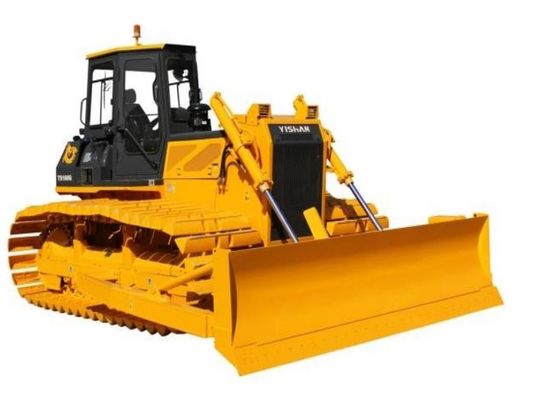

T160H Crawler Bulldozer Truck Construction Bulldozer Truck
The T160H bulldozer has been developed as a comprehensive upgrade to the existing product range in order to create the best product and ensure technological leadership.
The CAN bus intelligent combination instrumentation, pointer-type instrumentation and colour LCD display, automatic detection of bulldozer faults, audible and visual alarms, Chinese display of fault information, easy for users to view; transmission system continues the high reliability of the Yishan 160 series cab interior sealed design, with low noise and dust-proof function electric control throttle control system, with energy-saving and environmental protection features; side door using the overall opening design, The hydraulic system is more efficient due to the forward shift of the oil cylinder; the control system adopts the left-hand centralized operation and the national stage engine, which is powerful and meets the requirements of environmental protection.
|
Engine |
WP10G178E355 |
|
Rated power (Kw/rpm) |
131/1850 |
|
Fuel consumption(g/KwH) |
≦ 215 |
|
Max torque (NM/rpm) |
830/1150 |
|
Min.ground radium(m) |
3.1 |
|
Grade ability(°) |
30 |
|
Max.drawbar pull(KN) |
144 |
| Operation weight(Kg) | 15738 |
|
Forward(Km/H) |
2.7/3.7/5.4/7.6/11 |
|
Reverse(Km/H) |
3.5/4.9/7.0/9.8 |
|
Ground contact length (mm) |
2430 |
|
Shoe width (mm) |
510 |
|
Ground pressure (Kpa) |
63 |
|
Min.ground clearance (mm) |
400 |
|
Overall dimensions L×W×H (mm) |
5125*3416*3190 |
|
Blade dimensions W×H (mm) |
3416*1149 |
|
Blade digging angle(°) |
55 |
|
Blade max.tilt adjustment (mm) |
860 |
|
Blade max.ground clearance (mm) |
1095 |
|
Blade max.digging clearance(mm) |
532 |
|
Blade capacity (M³) |
4.5 |
|
Working efficiency (for 40m moving) (M3/h) |
255 |
|
System pressure (Mpa) |
13.7 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
