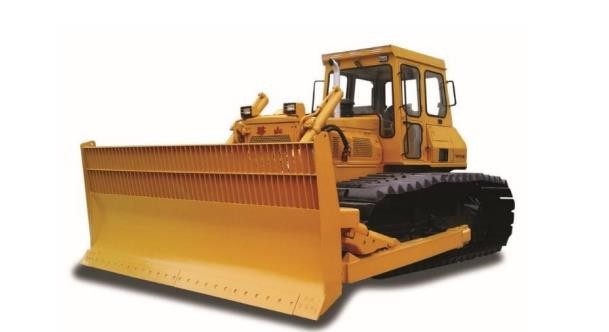

Weichai Road Bulldozer Hydraulic Dozer Machine 26kpa

Place of Origin:CHINA
Model Number:TSH160
Minimum Order Quantity:1
Price:bargain
Product Details
Highlight:

Weichai road bulldozer

,

26kpa road bulldozer

,

Weichai hydraulic dozer
Fuel Consumption: ≤215
Max Torque: 830/1150
Operation Weight: 18074kg
Grade Ability: 30
Ground Contact Length: 3140mm
Ground Pressure: 26kpa
Product Description

18074kg Sanitation License Type Bulldozer Construction Bulldozer Truck

TSH160 sanitation license type bulldozer is produced according to Komatsu D60P-8 technology. The whole machine is equipped with Weichai's high-power engine and large-capacity bulldozer. It is suitable for working conditions such as garbage stacking, landfilling, leveling, compaction, and dirt trough traction, with high working efficiency.



Model Parameters
Engine WP10G178E355
Rate power (kw/rpm) 131/1850
Fuel consumption(g/KwH) ≤215
Max torque(NM/rpm) 830/1150
Blade type Sanitation shovel
Operation weight(Kg) 18074
Min.ground radium(m) 4.3
Shoe width(mm) 1070
Ground pressure(Kpa) 26
Min.ground clearance(mm) 510
Overall dimensions L×W×H(mm) 5779×4150×3079
Blade dimensions W×H(mm) 4150×1688
Blade digging angle 55
Blade max.tilt adjustment(mm) 789
Blade max.ground clearance(mm) 1026
Grade ability 30
Max.drawbar pull(KN) 144
Forward(Km/H) 2.7/3.7/5.4/7.6/11
Reverse(Km/H) 3.5/4.9/7.0/9.8
Ground contact length(mm) 3140

Weichai Road Bulldozer Hydraulic Dozer Machine 26kpa 0Weichai Road Bulldozer Hydraulic Dozer Machine 26kpa 1

1. Warranty time is 12 months.


2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.


3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
