Swamp Construction Bulldozer Truck Crawler 1850kw
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINXING CATHAY EMERGENCY |
| Model Number | T160H |
| Minimum Order Quantity | 1 |
| Price | bargain |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 131/1850kw/pm | Fuel Consumption | ≤215 |
|---|---|---|---|
| Operation Weight | 15738kg | Ground Contact Length | 2430mm |
| Ground Pressure | 63Kpa | Overall Dimensions | 5779*4150*3079 |
| Highlight | Swamp Construction Bulldozer Truck,1850kw Construction Bulldozer Truck,Swamp bulldozer crawler |
||
Product Description

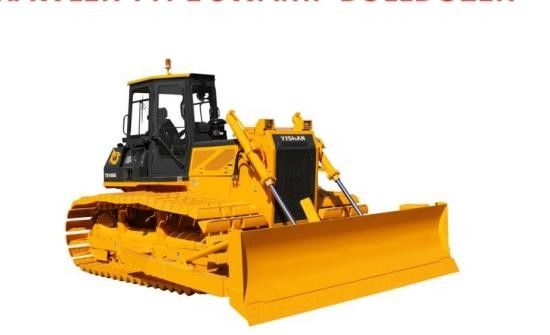

63Kpa Crawler Type Swamp Bulldozer Construction Bulldozer Truck
TS160 wetland bulldozer is produced according to Komatsu D60P-8 technology. The whole machine is equipped with a Weichai engine and a large-capacity bulldozer. It is suitable for high water content, swamp, viscous geological conditions, with high work efficiency. It is the best-selling model in China.
| Model | Parameters |
| Engine | WP10G178E355 |
| Rate power (kw/rpm) | 131/1850 |
| Fuel consumption(g/KwH) | ≤215 |
| Max torque(NM/rpm) | 830/1150 |
| Blade type | Sanitation shovel |
| Operation weight(Kg) | 18074 |
| Min.ground radium(m) | 4.3 |
| Shoe width(mm) | 1070 |
| Ground pressure(Kpa) | 26 |
| Min.ground clearance(mm) | 510 |
| Overall dimensions L×W×H(mm) | 5779×4150×3079 |
| Blade dimensions W×H(mm) | 4150×1688 |
| Blade digging angle | 55 |
| Blade max.tilt adjustment(mm) | 789 |
| Blade max.ground clearance(mm) | 1026 |
| Grade ability | 30 |
| Max.drawbar pull(KN) | 144 |
| Forward(Km/H) | 2.7/3.7/5.4/7.6/11 |
| Reverse(Km/H) | 3.5/4.9/7.0/9.8 |
| Ground contact length(mm) | 3140 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
