TSYH220H Crawler Dozer Truck Bulldozer Heavy Equipment 14Mpa
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINXING CATHAY |
| Model Number | TSYH220H |
| Minimum Order Quantity | 1 |
| Price | bargain |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine | QSNT-C235 | Rated Power | 175/1800 |
|---|---|---|---|
| Fuel Consumpyion | ≤222 | Operation Weight | 26100 |
| Ground Contact Length | 3480 | Ground Pressure | 39 |
| Highlight | crawler dozer Truck,14Mpa crawler dozer,14Mpa bulldozer heavy equipment |
||
Product Description

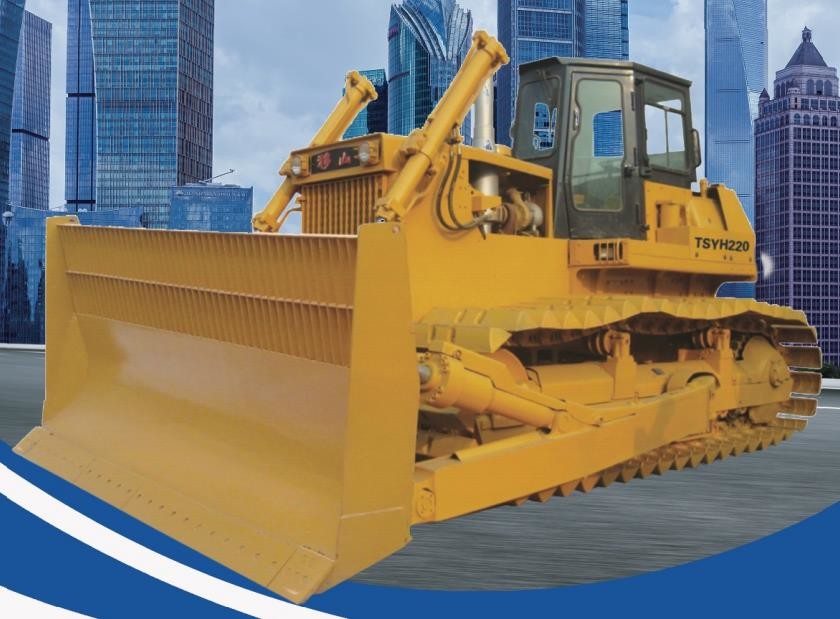

TSYH220H 14Mpa Crawler Bulldozer Truck Construction Bulldozer Truck
TSYH220H is a high-horsepower wetland liner, which uses an acid engine with strong power and environmental protection.
This machine has a new carbon-based blanket, such as driven ocean-moving bullets, which has obvious technical advantages compared with the industry fluorescent models. It has increased the root accumulation of Tuxer machine, silver people's pointing parts, and the performance of wetlands is better than that of similar products in the same industry.
|
Engine |
QSNT-C235 |
|
Rated power (Kw/rpm) |
175/1800 |
|
Fuel consumption(g/KwH) |
≦ 222 |
|
Max torque (NM/rpm) |
1085/1300 |
|
Min.ground radium(m) |
4.1 |
|
Grade ability(°) |
30 |
|
Max.drawbar pull(KN) |
203 |
| Operation weight(Kg) | 26100 |
|
Forward(Km/H) |
3.6/6.5/11.2 |
|
Reverse(Km/H) |
4.3/7.7/13.2 |
|
Ground contact length (mm) |
3480 |
|
Shoe width (mm) |
910 |
|
Ground pressure (Kpa) |
39 |
|
Min.ground clearance (mm) |
515 |
|
Overall dimensions L×W×H (mm) |
6060*4365*3402 |
|
Blade dimensions W×H (mm) |
4365*1900 |
|
Blade digging angle(°) |
55 |
|
Blade max.tilt adjustment (mm) |
735 |
|
Blade max.ground clearance (mm) |
1300 |
|
Blade max.digging clearance(mm) |
550 |
|
Blade capacity (M³) |
15.8 |
|
Working efficiency (for 40m moving) (M3/h) |
331 |
|
System pressure (Mpa) |
14 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
