ODM Road Construction Bulldozer Truck Heavy Equipment Drive system
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINXING CATHAY EMERGENCY |
| Model Number | T160H |
| Minimum Order Quantity | 1 Unit |
| Price | Bargain |
| Delivery Time | 45DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 1/45DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine | WP10G178E355 | Operation Weight（Kg | 15738 |
|---|---|---|---|
| Rated Power (Kw/rpm) | 131/1850 | Overall Dimensions L×W×H (mm) | 5125*3416*3190 |
| Working Efficiency (for 40m Moving) (M3/h) | 255 | Fuel Consumption（g/KwH） | ≦ 215 |
| Max Torque (NM/rpm) | 830/1150 | Blade Type | Straight Shovel |
| Min.ground Radium（m) | 3.1 | Grade Ability（°） | 30 |
| Max.drawbar Pull（KN） | 144 | Forward（Km/H） | 2.7/3.7/5.4/7.6/11 |
| Name | Low Fuel Consumption Bulldozer | Keywords | Construction Bulldozer Truck |
| Highlight | ODM Construction Bulldozer Truck,Drive system Construction Bulldozer Truck,construction dozer Equipment |
||
Product Description

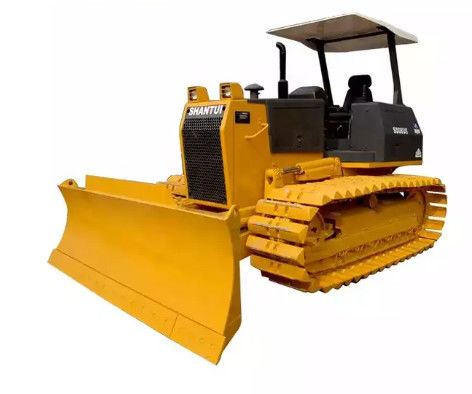

131Kw Crawler Type Low Fuel Consumption Bulldozer Engineering Construction Machinery
Drive system The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency. Its self-made drive system features stable performance and reliable quality and has been long proved by the market.
|
Engine |
WP10G178E355 |
|
Rated power (Kw/rpm) |
131/1850 |
|
Fuel consumption(g/KwH) |
≦ 215 |
|
Max torque (NM/rpm) |
830/1150 |
|
Min.ground radium(m) |
3.1 |
|
Grade ability(°) |
30 |
|
Max.drawbar pull(KN) |
144 |
| Operation weight(Kg) | 15738 |
|
Forward(Km/H) |
2.7/3.7/5.4/7.6/11 |
|
Reverse(Km/H) |
3.5/4.9/7.0/9.8 |
|
Ground contact length (mm) |
2430 |
|
Shoe width (mm) |
510 |
|
Ground pressure (Kpa) |
63 |
|
Min.ground clearance (mm) |
400 |
|
Blade capacity (M³) |
4.5 |
|
Working efficiency (for 40m moving) (M3/h) |
255 |
|
System pressure (Mpa) |
13.7 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
