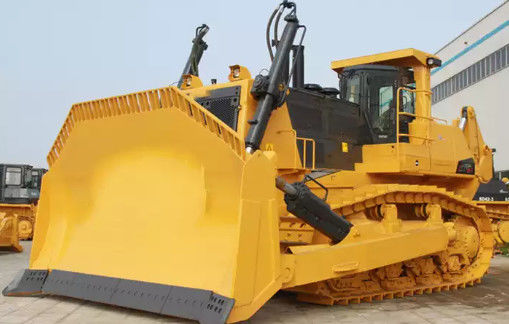

XINXING Straight shovel Construction Bulldozer Truck Equipment
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINXING CATHAY EMERGENCY |
| Minimum Order Quantity | 1 Unit |
| Price | Bargain |
| Delivery Time | 45DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 1/45DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine | WP10G178E355 | Operation Weight（Kg | 15738 |
|---|---|---|---|
| Rated Power (Kw/rpm) | 131/1850 | Working Efficiency (for 40m Moving) (M3/h) | 255 |
| Fuel Consumption（g/KwH） | ≦ 215 | Max Torque (NM/rpm) | 830/1150 |
| Blade Type | Straight Shovel | Min.ground Radium（m) | 3.1 |
| Grade Ability（°） | 30 | Forward（Km/H） | 2.7/3.7/5.4/7.6/11 |
| Name | Low Fuel Consumption Bulldozer | Keywords | Construction Bulldozer Truck |
| High Light | XINXING Construction Bulldozer Truck,Construction Bulldozer Truck Equipment,Truck bulldozer equipment |
||
Product Description
131Kw Crawler Type Low Fuel Consumption Bulldozer Engineering Construction Machinery
The A/C and heating system, the intelligent display and control terminal with integrated instruments, and fire extinguisher are installed to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment. The safety passage system of the machine guarantees the driver's safety.
|
Engine |
WP10G178E355 |
|
Rated power (Kw/rpm) |
131/1850 |
|
Fuel consumption(g/KwH) |
≦ 215 |
|
Max torque (NM/rpm) |
830/1150 |
|
Min.ground radium(m) |
3.1 |
|
Grade ability(°) |
30 |
|
Max.drawbar pull(KN) |
144 |
| Operation weight(Kg) | 15738 |
|
Forward(Km/H) |
2.7/3.7/5.4/7.6/11 |
|
Reverse(Km/H) |
3.5/4.9/7.0/9.8 |
|
Ground contact length (mm) |
2430 |
|
Shoe width (mm) |
510 |
|
Ground pressure (Kpa) |
63 |
|
Min.ground clearance (mm) |
400 |
|
Overall dimensions L×W×H (mm) |
5125*3416*3190 |
|
Blade dimensions W×H (mm) |
3416*1149 |
|
Blade digging angle(°) |
55 |
|
Blade max.tilt adjustment (mm) |
860 |
|
Blade max.ground clearance (mm) |
1095 |
|
Blade max.digging clearance(mm) |
532 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
