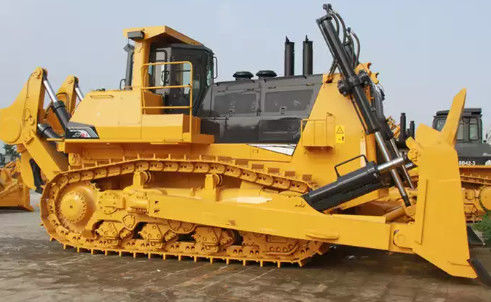

Crawler High Lift Mining Dozer Truck Customized
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINXING CATHAY |
| Minimum Order Quantity | 1 |
| Price | bargain |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine | WP10G178E355 | Rated Power | 131/1850 |
|---|---|---|---|
| Fuel Consumpyion | ≤215 | Operation Weight | 15738 |
| Ground Contact Length | 2430 | Ground Pressure | 63 |
| Highlight | Crawler mining dozer,mining dozer Truck,high lift dozer Truck |
||
Product Description
T160H Crawler Bulldozer Truck Construction Bulldozer Truck
Working adaptability The undercarriage system adopts type K track roller elastic suspension to achieve higher ground area, higher traction force, and more powerful traveling of machine on uneven roads. The rollover protection structure is installed on the main frame to achieve higher strength and reliability.
|
Engine |
WP10G178E355 |
|
Rated power (Kw/rpm) |
131/1850 |
|
Fuel consumption(g/KwH) |
≦ 215 |
|
Max torque (NM/rpm) |
830/1150 |
|
Min.ground radium(m) |
3.1 |
|
Grade ability(°) |
30 |
|
Max.drawbar pull(KN) |
144 |
| Operation weight(Kg) | 15738 |
|
Forward(Km/H) |
2.7/3.7/5.4/7.6/11 |
|
Reverse(Km/H) |
3.5/4.9/7.0/9.8 |
|
Ground contact length (mm) |
2430 |
|
Shoe width (mm) |
510 |
|
Ground pressure (Kpa) |
63 |
|
Min.ground clearance (mm) |
400 |
|
Overall dimensions L×W×H (mm) |
5125*3416*3190 |
|
Blade dimensions W×H (mm) |
3416*1149 |
|
Blade digging angle(°) |
55 |
|
Blade max.tilt adjustment (mm) |
860 |
|
Blade max.ground clearance (mm) |
1095 |
|
Blade max.digging clearance(mm) |
532 |
|
Blade capacity (M³) |
4.5 |
|
Working efficiency (for 40m moving) (M3/h) |
255 |
|
System pressure (Mpa) |
13.7 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
