Mechanical Construction Bulldozer Truck High Track Dozer Sanitation License Type
| Place of Origin | CHINA |
|---|---|
| Model Number | TSH160 |
| Minimum Order Quantity | 1 |
| Price | bargain |
Product Details
| Fuel Consumption | ≤215 | Max Torque | 830/1150 |
|---|---|---|---|
| Operation Weight | 18074kg | Grade Ability | 30 |
| Ground Contact Length | 3140mm | Ground Pressure | 26kpa |
| Highlight | mechanical Construction Bulldozer Truck,High Track Construction Bulldozer Truck,Construction high track dozer |
||
Product Description

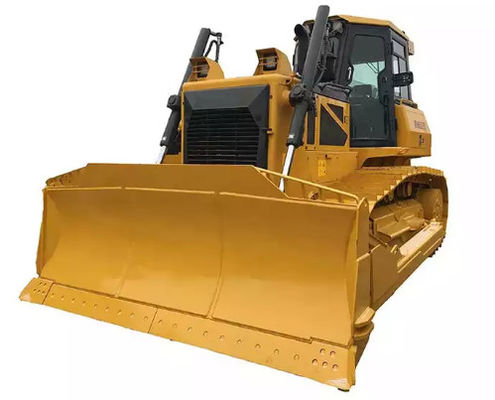

18074kg Sanitation License Type Bulldozer Construction Bulldozer Truck
Weichai mechanical engine conforms to the China-II non-road machinery emission regulation, featuring high intelligence and efficiency, simple structure, high parts interchangeability, and low maintenance cost. * The intelligent match technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%.
| Model | Parameters |
| Engine | WP10G178E355 |
| Rate power (kw/rpm) | 131/1850 |
| Fuel consumption(g/KwH) | ≤215 |
| Max torque(NM/rpm) | 830/1150 |
| Blade type | Sanitation shovel |
| Operation weight(Kg) | 18074 |
| Min.ground radium(m) | 4.3 |
| Shoe width(mm) | 1070 |
| Ground pressure(Kpa) | 26 |
| Min.ground clearance(mm) | 510 |
| Overall dimensions L×W×H(mm) | 5779×4150×3079 |
| Blade dimensions W×H(mm) | 4150×1688 |
| Blade digging angle | 55 |
| Blade max.tilt adjustment(mm) | 789 |
| Blade max.ground clearance(mm) | 1026 |
| Grade ability | 30 |
| Max.drawbar pull(KN) | 144 |
| Forward(Km/H) | 2.7/3.7/5.4/7.6/11 |
| Reverse(Km/H) | 3.5/4.9/7.0/9.8 |
| Ground contact length(mm) | 3140 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
