Hydraulic Yellow Construction Bulldozer Truck 131rpm-1850rpm
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINXING CATHAY EMERGENCY |
| Minimum Order Quantity | 1 Unit |
| Price | Bargain |
| Delivery Time | 45DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 1/45DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine | WP10G178E355 | Operation Weight（Kg | 15738 |
|---|---|---|---|
| Rated Power (Kw/rpm) | 131/1850 | Overall Dimensions L×W×H (mm) | 5125*3416*3190 |
| Working Efficiency (for 40m Moving) (M3/h) | 255 | Fuel Consumption（g/KwH） | ≦ 215 |
| Max.drawbar Pull（KN） | 144 | Forward（Km/H） | 2.7/3.7/5.4/7.6/11 |
| Name | Low Fuel Consumption Bulldozer | Keywords | Construction Bulldozer Truck |
| High Light | Hydraulic Construction Bulldozer Truck,131rpm Construction Bulldozer Truck,Hydraulic yellow bulldozer |
||
Product Description

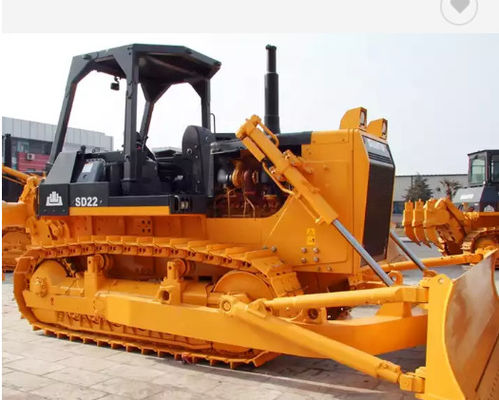

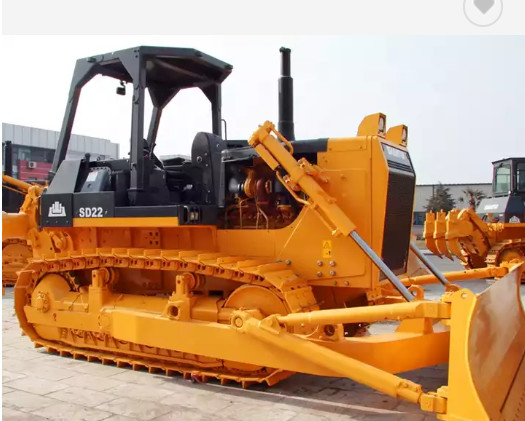

131Kw Crawler Type Low Fuel Consumption Bulldozer Engineering Construction Machinery
This bulldozer is hydraulic direct drive, semi-rigid suspended and hydraulic controls. It is equipped with Shangchai diesel engine. The engine has the characteristics of big torque reserve coefficient and capacity against over-load. The torque converter is a hydro-mechanical converter whose power is divided outside, which has the characteristics of wide high efficiency range.
|
Engine |
WP10G178E355 |
|
Rated power (Kw/rpm) |
131/1850 |
|
Fuel consumption(g/KwH) |
≦ 215 |
|
Max torque (NM/rpm) |
830/1150 |
|
Min.ground radium(m) |
3.1 |
|
Grade ability(°) |
30 |
|
Max.drawbar pull(KN) |
144 |
| Operation weight(Kg) | 15738 |
|
Forward(Km/H) |
2.7/3.7/5.4/7.6/11 |
|
Reverse(Km/H) |
3.5/4.9/7.0/9.8 |
|
Ground contact length (mm) |
2430 |
|
Shoe width (mm) |
510 |
|
Ground pressure (Kpa) |
63 |
|
Min.ground clearance (mm) |
400 |
|
Overall dimensions L×W×H (mm) |
5125*3416*3190 |
|
Blade dimensions W×H (mm) |
3416*1149 |
|
Blade digging angle(°) |
55 |
|
Blade max.tilt adjustment (mm) |
860 |
|
Blade max.ground clearance (mm) |
1095 |
|
Blade max.digging clearance(mm) |
532 |
|
Blade capacity (M³) |
4.5 |
|
Working efficiency (for 40m moving) (M3/h) |
255 |
|
System pressure (Mpa) |
13.7 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
