63Kpa Crawler Type Swamp Dozer Truck Construction Machinery
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINXING CATHAY EMERGENCY |
| Minimum Order Quantity | 1 |
| Price | bargain |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 131/1850kw/pm | Fuel Consumption | ≤215 |
|---|---|---|---|
| Operation Weight | 15738kg | Ground Contact Length | 2430mm |
| Ground Pressure | 63Kpa | Overall Dimensions | 5779*4150*3079 |
| Highlight | 63Kpa swamp dozer,Crawler swamp dozer,63Kpa dozer truck |
||
Product Description

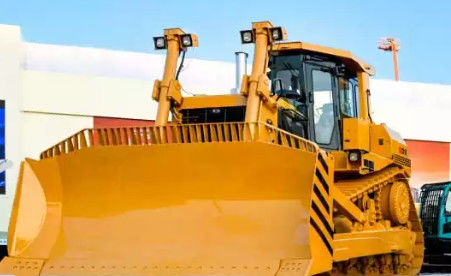

63Kpa Crawler Type Swamp Bulldozer Construction Bulldozer Truck
Steering and braking can be controlled with the same control lever. Braking system utilizes hydraulic boosting structure, which is convenient and labor-saving. The final drive gear has the characteristics of large displacement coefficient value. This kind of design raises bearing capacity and prolongs the useful time. The final drive also utilizes the structure that its bearing clearance is free of adjustment, which is convenient for service. The equalizer bar utilizes free lubricating structure to decrease service cost.
| Model | Parameters |
| Engine | WP10G178E355 |
| Rate power (kw/rpm) | 131/1850 |
| Fuel consumption(g/KwH) | ≤215 |
| Max torque(NM/rpm) | 830/1150 |
| Blade type | Sanitation shovel |
| Operation weight(Kg) | 18074 |
| Min.ground radium(m) | 4.3 |
| Shoe width(mm) | 1070 |
| Ground pressure(Kpa) | 26 |
| Min.ground clearance(mm) | 510 |
| Overall dimensions L×W×H(mm) | 5779×4150×3079 |
| Blade dimensions W×H(mm) | 4150×1688 |
| Blade digging angle | 55 |
| Blade max.tilt adjustment(mm) | 789 |
| Blade max.ground clearance(mm) | 1026 |
| Grade ability | 30 |
| Max.drawbar pull(KN) | 144 |
| Forward(Km/H) | 2.7/3.7/5.4/7.6/11 |
| Reverse(Km/H) | 3.5/4.9/7.0/9.8 |
| Ground contact length(mm) | 3140 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
