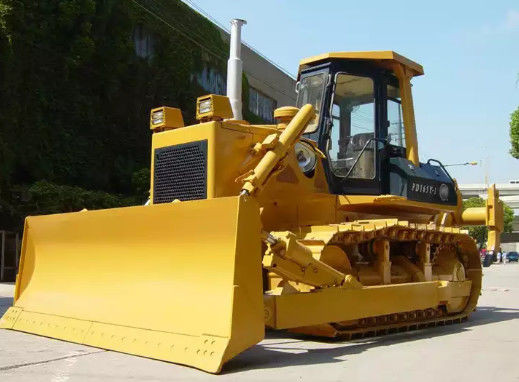

Hydraulic Crawler Construction Bulldozer Truck 18074kg
Place of Origin:CHINA
Minimum Order Quantity:1
Price:bargain
Payment Terms:L/C, T/T
Product Details
Highlight:
18074kg Construction Bulldozer Truck
,Hydraulic Construction Bulldozer Truck
,18074kg crawler bulldozer
Fuel Consumption:
≤215
Max Torque:
830/1150
Operation Weight:
18074kg
Grade Ability:
30
Ground Contact Length:
3140mm
Ground Pressure:
26kpa
Product Description
18074kg Sanitation License Type Bulldozer Construction Bulldozer Truck
This bulldozer is hydraulic direct drive, semi-rigid suspended and hydraulic controls. It is equipped with Shangchai diesel engine. The engine has the characteristics of big torque reserve coefficient and capacity against over-load. The torque converter is a hydro-mechanical converter whose power is divided outside, which has the characteristics of wide high efficiency range.
| Model | Parameters |
| Engine | WP10G178E355 |
| Rate power (kw/rpm) | 131/1850 |
| Fuel consumption(g/KwH) | ≤215 |
| Max torque(NM/rpm) | 830/1150 |
| Blade type | Sanitation shovel |
| Operation weight(Kg) | 18074 |
| Min.ground radium(m) | 4.3 |
| Shoe width(mm) | 1070 |
| Ground pressure(Kpa) | 26 |
| Min.ground clearance(mm) | 510 |
| Overall dimensions L×W×H(mm) | 5779×4150×3079 |
| Blade dimensions W×H(mm) | 4150×1688 |
| Blade digging angle | 55 |
| Blade max.tilt adjustment(mm) | 789 |
| Blade max.ground clearance(mm) | 1026 |
| Grade ability | 30 |
| Max.drawbar pull(KN) | 144 |
| Forward(Km/H) | 2.7/3.7/5.4/7.6/11 |
| Reverse(Km/H) | 3.5/4.9/7.0/9.8 |
| Ground contact length(mm) | 3140 |
Our Services
The warranty lasts for one year
The warranty object is the main parts of the product
The way of warranty service can be online guidance or offline door-to-door
