OEM Bulldozer Monster Truck 1850kw Low Fuel Consumption
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINXING CATHAY EMERGENCY |
| Minimum Order Quantity | 1 Unit |
| Price | Bargain |
| Delivery Time | 45DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 1/45DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine | WP10G178E355 | Operation Weight（Kg | 15738 |
|---|---|---|---|
| Rated Power (Kw/rpm) | 131/1850 | Overall Dimensions L×W×H (mm) | 5125*3416*3190 |
| Working Efficiency (for 40m Moving) (M3/h) | 255 | Fuel Consumption（g/KwH） | ≦ 215 |
| Min.ground Radium（m) | 3.1 | Grade Ability（°） | 30 |
| Max.drawbar Pull（KN） | 144 | Forward（Km/H） | 2.7/3.7/5.4/7.6/11 |
| Name | Low Fuel Consumption Bulldozer | Keywords | Construction Bulldozer Truck |
| Highlight | OEM bulldozer monster truck,1850kw bulldozer monster truck,OEM bull dozers |
||
Product Description

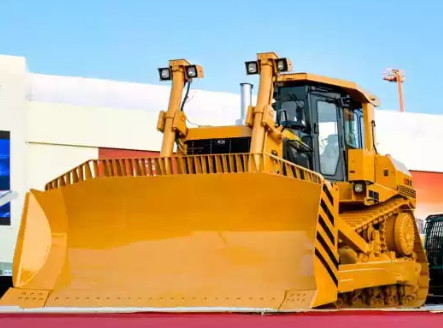

131Kw Crawler Type Low Fuel Consumption Bulldozer Engineering Construction Machinery
Steering and braking can be controlled with the same control lever. Braking system utilizes hydraulic boosting structure, which is convenient and labor-saving. The final drive gear has the characteristics of large displacement coefficient value. This kind of design raises bearing capacity and prolongs the useful time. The final drive also utilizes the structure that its bearing clearance is free of adjustment, which is convenient for service. The equalizer bar utilizes free lubricating structure to decrease service cost.
|
Engine |
WP10G178E355 |
|
Rated power (Kw/rpm) |
131/1850 |
|
Fuel consumption(g/KwH) |
≦ 215 |
|
Max torque (NM/rpm) |
830/1150 |
|
Min.ground radium(m) |
3.1 |
|
Grade ability(°) |
30 |
|
Max.drawbar pull(KN) |
144 |
| Operation weight(Kg) | 15738 |
|
Forward(Km/H) |
2.7/3.7/5.4/7.6/11 |
|
Reverse(Km/H) |
3.5/4.9/7.0/9.8 |
|
Ground contact length (mm) |
2430 |
|
Shoe width (mm) |
510 |
|
Ground pressure (Kpa) |
63 |
|
Min.ground clearance (mm) |
400 |
|
Overall dimensions L×W×H (mm) |
5125*3416*3190 |
|
Blade dimensions W×H (mm) |
3416*1149 |
|
Blade digging angle(°) |
55 |
|
Blade max.tilt adjustment (mm) |
860 |
|
Blade max.ground clearance (mm) |
1095 |
|
Blade max.digging clearance(mm) |
532 |
|
Blade capacity (M³) |
4.5 |
|
Working efficiency (for 40m moving) (M3/h) |
255 |
|
System pressure (Mpa) |
13.7 |
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Semi Trailer,Tank Trailer, Truck,Machinery
