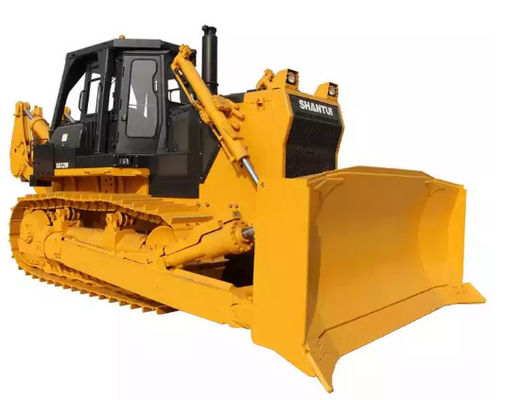

Crawler Type Construction Bulldozer Truck Engineering Machinery 131Kw
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINXING CATHAY EMERGENCY |
| Minimum Order Quantity | 1 Unit |
| Price | Bargain |
| Delivery Time | 45DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 1/45DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine | WP10G178E355 | Operation Weight（Kg | 15738 |
|---|---|---|---|
| Rated Power (Kw/rpm) | 131/1850 | Overall Dimensions L×W×H (mm) | 5125*3416*3190 |
| Blade Type | Straight Shovel | Min.ground Radium（m) | 3.1 |
| Grade Ability（°） | 30 | Max.drawbar Pull（KN） | 144 |
| Forward（Km/H） | 2.7/3.7/5.4/7.6/11 | Name | Low Fuel Consumption Bulldozer |
| Keywords | Construction Bulldozer Truck | ||
| High Light | Crawler Type Construction Bulldozer Truck,131Kw Construction Bulldozer Truck,131Kw crawler dozer |
||
Product Description
131Kw Crawler Type Low Fuel Consumption Bulldozer Engineering Construction Machinery
It uses patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system. With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD22 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.
|
Engine |
WP10G178E355 |
|
Rated power (Kw/rpm) |
131/1850 |
|
Fuel consumption(g/KwH) |
≦ 215 |
|
Max torque (NM/rpm) |
830/1150 |
|
Min.ground radium(m) |
3.1 |
|
Grade ability(°) |
30 |
|
Max.drawbar pull(KN) |
144 |
| Operation weight(Kg) | 15738 |
|
Forward(Km/H) |
2.7/3.7/5.4/7.6/11 |
|
Reverse(Km/H) |
3.5/4.9/7.0/9.8 |
|
Ground contact length (mm) |
2430 |
|
Shoe width (mm) |
510 |
|
Ground pressure (Kpa) |
63 |
|
Min.ground clearance (mm) |
400 |
|
Blade capacity (M³) |
4.5 |
|
Working efficiency (for 40m moving) (M3/h) |
255 |
|
System pressure (Mpa) |
13.7 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
