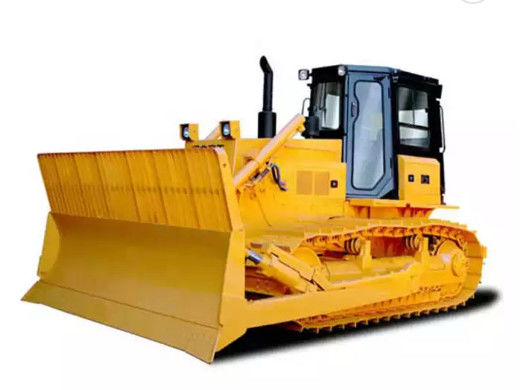

Crawler Mounted Construction Bulldozer Truck T160H WP10G178E355

Place of Origin:CHINA

Minimum Order Quantity:1

Price:bargain

Payment Terms:L/C, T/T

Product Details

Highlight:

Crawler Construction Bulldozer Truck

,

T160H Construction Bulldozer Truck

,

T160H crawler mounted bulldozer

Engine: WP10G178E355

Rated Power: 131/1850

Fuel Consumpyion: ≤215

Operation Weight: 15738

Ground Contact Length: 2430

Ground Pressure: 63

Product Description

T160H Crawler Bulldozer Truck Construction Bulldozer Truck

The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.

The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.

The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding.

Engine	WP10G178E355
Rated power (Kw/rpm)	131/1850
Fuel consumption(g/KwH)	≦ 215
Max torque (NM/rpm)	830/1150
Min.ground radium(m)	3.1
Grade ability(°)	30
Max.drawbar pull(KN)	144
Operation weight(Kg)	15738
Forward(Km/H)	2.7/3.7/5.4/7.6/11
Reverse(Km/H)	3.5/4.9/7.0/9.8
Ground contact length (mm)	2430
Shoe width (mm)	510
Ground pressure (Kpa)	63
Min.ground clearance (mm)	400
Overall dimensions L×W×H (mm)	512534163190
Blade dimensions W×H (mm)	3416*1149
Blade digging angle(°)	55
Blade max.tilt adjustment (mm)	860
Blade max.ground clearance (mm)	1095
Blade max.digging clearance(mm)	532
Blade capacity (M³)	4.5
Working efficiency (for 40m moving) (M3/h)	255
System pressure (Mpa)	13.7

Crawler Mounted Construction Bulldozer Truck T160H WP10G178E355 0

1. how can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?

Truck,Trailer,Truck Parts,Trailer Parts,Tank

3. why should you buy from us not from other suppliers?

We are the leading company for truck and machinery business.We are the top brand of Chinese Truck Exporting. We serve trucks ,truck parts and machinery around the world.
