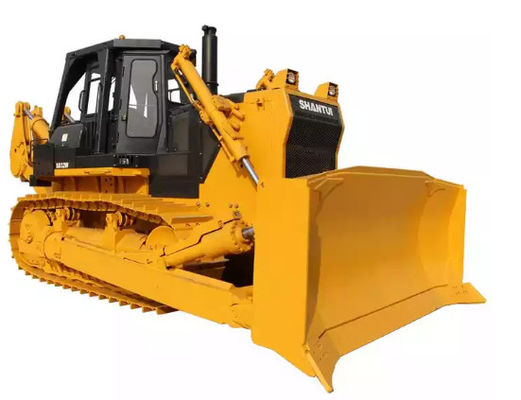

Heavy 130kw Bulldozer Truck Crawler Type Hydraulic Swamp 63 Kpa For Construction
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINXING CATHAY EMERGENCY |
| Minimum Order Quantity | 1 |
| Price | bargain |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 130/1850kw/pm | Fuel Consumption | ≤215 |
|---|---|---|---|
| Operation Weight | 15738kg | Ground Contact Length | 2430mm |
| Ground Pressure | 62Kpa | Overall Dimensions | 5779*4150*3076 |
| Highlight | 130kw bulldozer truck,crawler type hydraulic swamp bulldozer truck,63 kpa bulldozer truck for construction |
||
Product Description
63Kpa Crawler Type Swamp Bulldozer Construction Bulldozer Truck
1.mold &mildew resistance The surface of the board----Keying Glass board,makes it resistant to mold and mildew ,and easy to clean.It is also resistant to scratches,abrasions,staining.
2.Environmental protection There is non-toxic,non-radiomaterial,and tasteless,no harmful fumes.
3.Easy to install It can be cut freely into all kinds of irregular plates.
| Model | Parameters |
| Engine | WP10G178E355 |
| Rate power (kw/rpm) | 130/1850 |
| Fuel consumption(g/KwH) | ≤215 |
| Max torque(NM/rpm) | 830/1150 |
| Blade type | Sanitation shovel |
| Operation weight(Kg) | 15738kg |
| Min.ground radium(m) | 4.3 |
| Shoe width(mm) | 1070 |
| Ground pressure(Kpa) | 26 |
| Min.ground clearance(mm) | 510 |
| Overall dimensions L×W×H(mm) | 5779×4150×3076 |
| Blade dimensions W×H(mm) | 4150×1688 |
| Blade digging angle | 55 |
| Blade max.tilt adjustment(mm) | 789 |
| Blade max.ground clearance(mm) | 1026 |
| Grade ability | 30 |
| Max.drawbar pull(KN) | 144 |
| Forward(Km/H) | 2.7/3.7/5.4/7.6/11 |
| Reverse(Km/H) | 3.5/4.9/7.0/9.8 |
| Ground contact length(mm) | 3140 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
